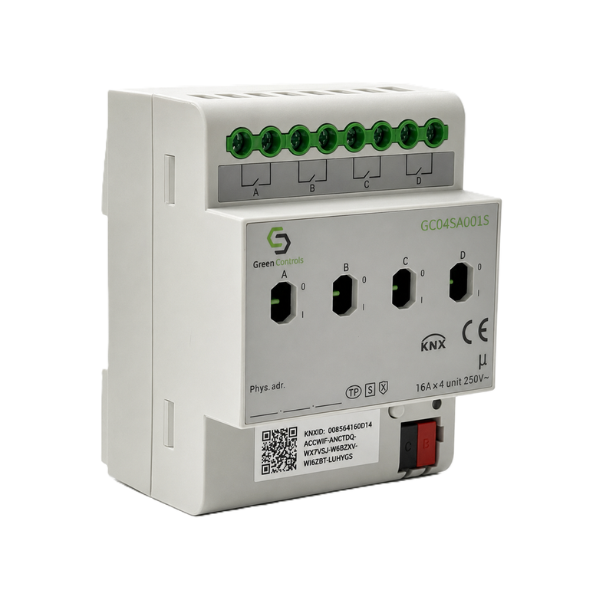

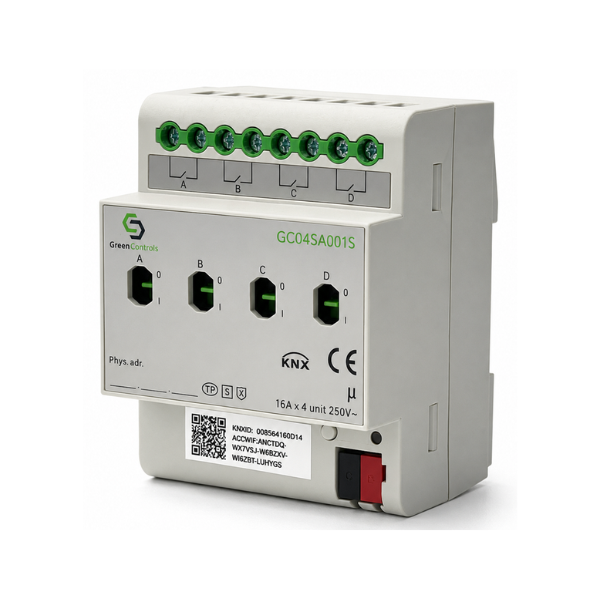

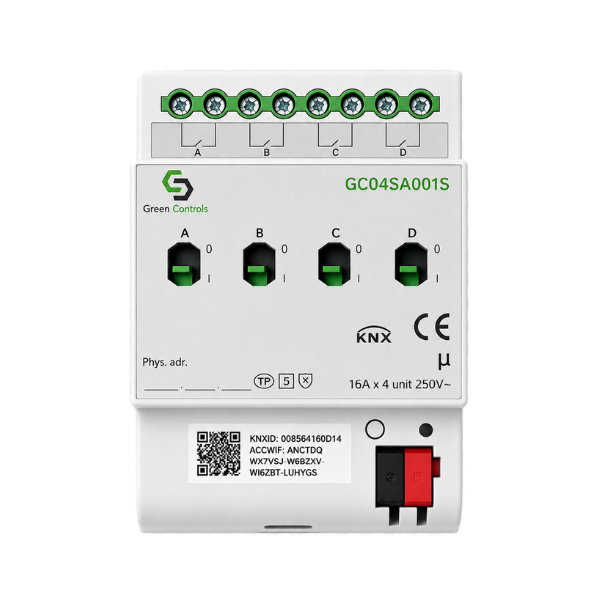

The GreenControls Switching Actuator, 4 Channel, 16A Secure is a KNX-certified actuator designed for intelligent switching control in residential and commercial building automation systems. Based on secure KNX communication technology, the actuator provides four independent output channels with up to 16A switching capacity per channel, suitable for controlling lighting, heating systems, signal devices and other electrical loads.
Designed for installation on a standard 35 mm DIN rail, the actuator connects directly to the KNX bus without requiring an additional power supply. Each channel supports manual operation with visible switching status indication, allowing convenient local control and monitoring during operation. The device is fully configurable through ETS software using KNX Secure communication for enhanced system protection and reliable integration.
The actuator supports advanced control functions including switching delay, staircase lighting, flashing function, scene control, logic operation, threshold control, forced operation, safety priority, and heating actuator functionality. It also features current and power monitoring, switching counter, operation hour counter and status feedback for improved energy management and system monitoring.
Engineered for long-term reliability, the device offers durable relay performance with high mechanical and electrical endurance, screw terminal connections, and compliance with KNX/EIB and CE standards for professional smart building installations.
