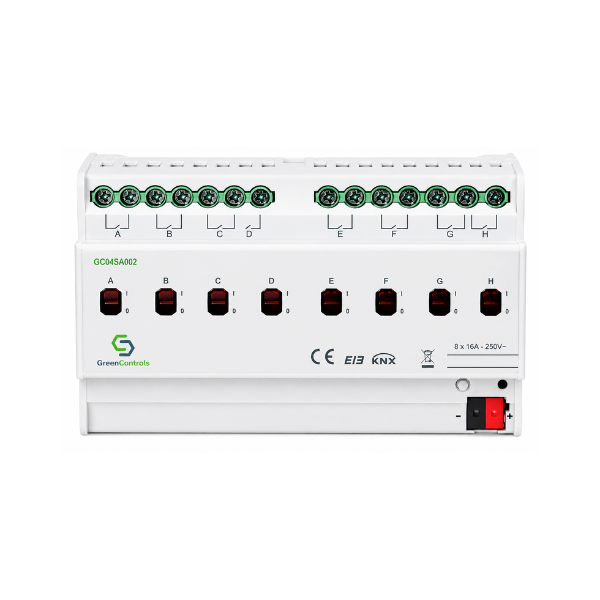

The GreenControls Switch Actuator, 8 Channel, 16A is a high-performance KNX-certified device designed for professional building automation projects. Installed on a 35 mm DIN rail, it provides eight independent outputs, each capable of switching resistive loads up to 16 A at 230 VAC or 24 VDC. This makes it a reliable solution for controlling lighting circuits, sockets, and other high-power electrical devices across residential, commercial, and industrial applications.
Each channel is individually parameterized through ETS software, supporting flexible functions such as switching, dimming, and scene control. To ensure uninterrupted operation, the actuator features mechanical bypass buttons, allowing manual ON/OFF switching of each load even without KNX communication.
With a robust design rated for over 100,000 switching cycles (AC1), the actuator guarantees long service life and dependable performance. It uses secure screw terminals for load connections and a standard KNX bus terminal (red/black) for seamless integration. Despite its strong capabilities, it remains energy-efficient, consuming less than 12 mA from the KNX bus and a maximum of 360 mW power.
Compact and practical at 144 × 90 × 64 mm, the Switch Actuator is fully EIB KNX certified and complies with CE norms (EN 50090-2-2) for EMC and low-voltage guidelines. Its combination of reliability, flexibility, and ease of installation makes it an essential choice for scalable and future-proof KNX automation systems.
