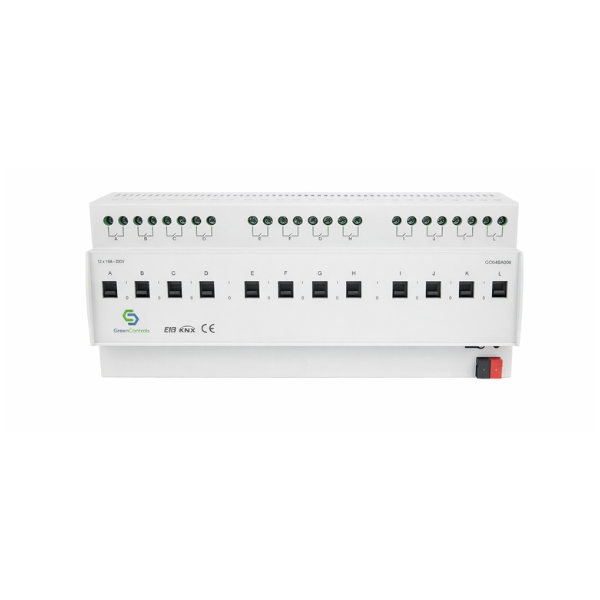

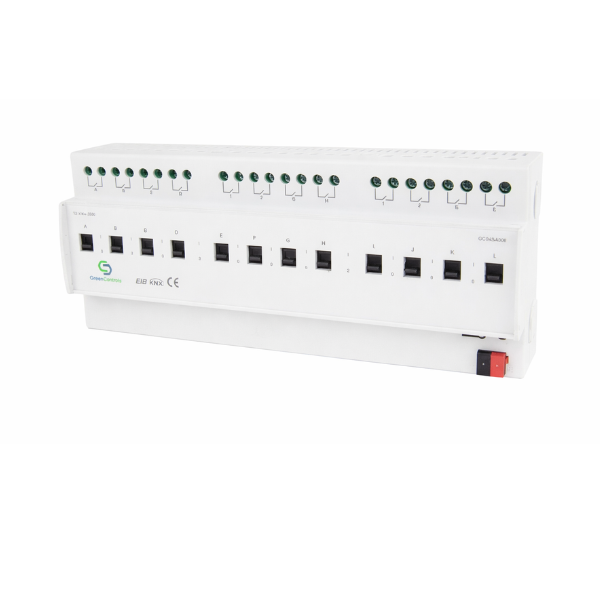

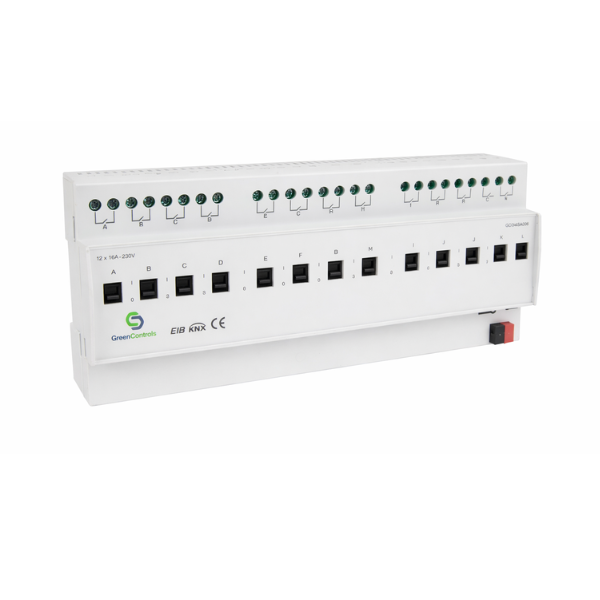

The GreenControls Switching Actuator, 12 Channel, 20A with Current Detection is a high-capacity KNX-certified device designed for professional automation projects that demand robust load control and monitoring. Installed on a 35mm DIN rail, it provides twelve independent outputs, each capable of switching resistive loads up to 20A at 230VAC or 24VDC, making it the perfect solution for large-scale lighting, HVAC, and power distribution applications in smart buildings.
Equipped with integrated current detection, the actuator enables real-time monitoring of connected loads, helping optimize energy use, enhance system safety, and quickly identify irregularities. Each channel is fully configurable through ETS software, supporting advanced functions such as switching, dimming, and scene control, offering unmatched flexibility for system integrators.
For added reliability, each channel is fitted with a mechanical bypass button, allowing manual ON/OFF control independent of KNX communication. LED indicators simplify diagnostics — with a green LED showing device status and a red LED with push button dedicated to assigning physical addresses.
Despite its powerful capacity, the actuator is energy-efficient, consuming less than 12mA from the KNX bus and a maximum of 250mW. Compact yet capable, it measures 216 × 90 × 64 mm, comes in a white finish, and weighs 0.7kg. Fully EIB KNX certified and compliant with CE standards (EN 50090-2-2), it delivers long-term reliability, scalability, and precision control for demanding automation environments.
