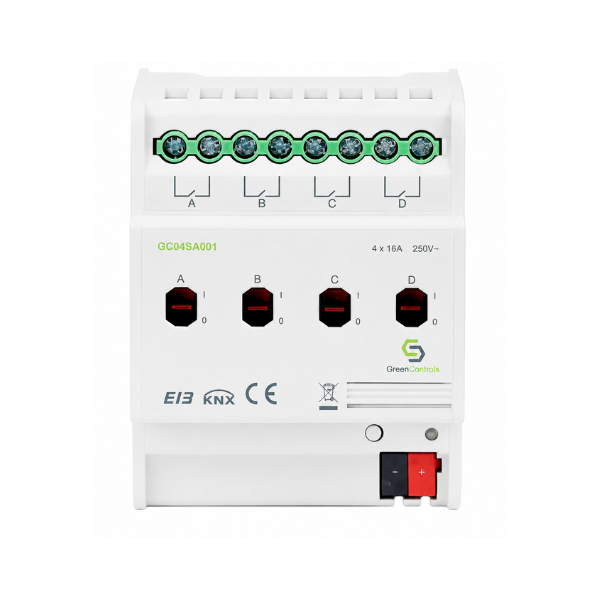

The GreenControls Switch Actuator, 4 Channel, 16A is a robust KNX-certified device designed for reliable switching of electrical loads in smart buildings. Installed on a standard 35 mm DIN rail, it provides four independent outputs, each capable of handling up to 16 A for both 230 VAC and 24 VDC resistive loads. This makes it ideal for controlling lighting, sockets, or other high power equipment in residential, commercial, or industrial automation projects.
Each output channel is fully parameterized via ETS software, allowing flexible configuration for switching, dimming, or scene control. For convenience and safety, the actuator is equipped with a mechanical bypass button that enables manual ON/OFF control even without KNX communication ensuring reliable operation at all times.
With a durable mechanical design rated for over 100,000 switching cycles (AC1), the Switch Actuator offers long service life and consistent performance. It features secure screw terminal connections for load circuits and a standard KNX bus terminal (red/black) for network integration.
Engineered for efficiency, the actuator consumes less than 12 mA from the KNX bus and operates at a maximum power draw of 360 mW. Certified to EIB KNX standards and compliant with CE (EN 50090-2-2) safety requirements, it is built for professional installations where reliability and scalability are essential.
