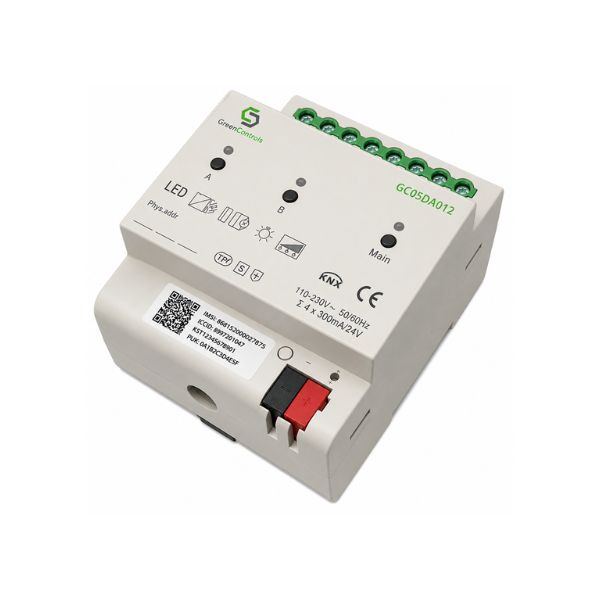

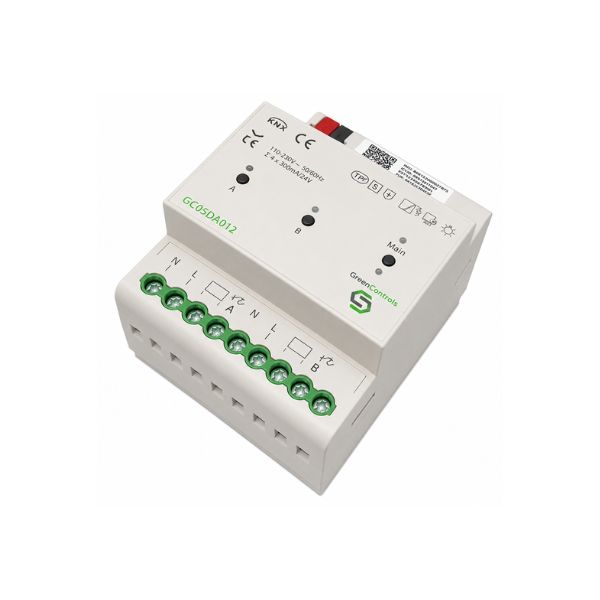

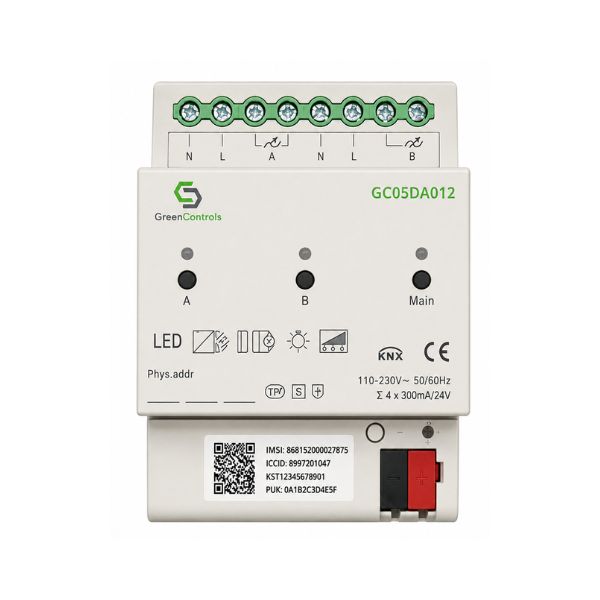

The Universal Dimming Actuator is a versatile device designed for installation in distribution boards and supports both leading edge and trailing edge phase-cut dimming technologies, making it suitable for a broad spectrum of lighting loads. This dual compatibility allows the actuator to control resistive, inductive, and capacitive loads effectively, such as incandescent lamps, 230 V AC halogen lamps, and low-voltage halogen lamps operating on either conventional or electronic transformers. Its adaptability ensures reliable performance across different lamp types and provides flexibility in modern lighting installations.
One of the key features of the Universal Dimming Actuator is its ability to handle up to six selectable dimming curves, including Linear, Exponential, Cubic, Quadratic, Logarithmic, Root, and even user-defined curves. This functionality enables precise customization of the dimming response to match specific lamp characteristics, user preferences, or project requirements, thereby delivering optimal visual comfort and energy efficiency.
Each channel of the dimming actuator can be individually parameterized via ETS (Engineering Tool Software), allowing system integrators to configure important settings such as minimum and maximum dimming levels, fade-in and fade-out times, soft start and soft off behavior, and curve selection. These settings ensure smooth dimming transitions, enhanced lamp protection, and tailored lighting performance. Additionally, diagnostic and protective functions, including overload, short-circuit, and thermal protection, safeguard both the actuator and the connected lighting equipment, ensuring long-term reliability.
The actuator integrates seamlessly into the KNX bus system through a standard bus connection terminal, providing full interoperability with other KNX devices in the building automation network. This allows for flexible control strategies, including individual or group operation, scene control, time-based scheduling, and centralized or remote management via KNX visualization platforms.
