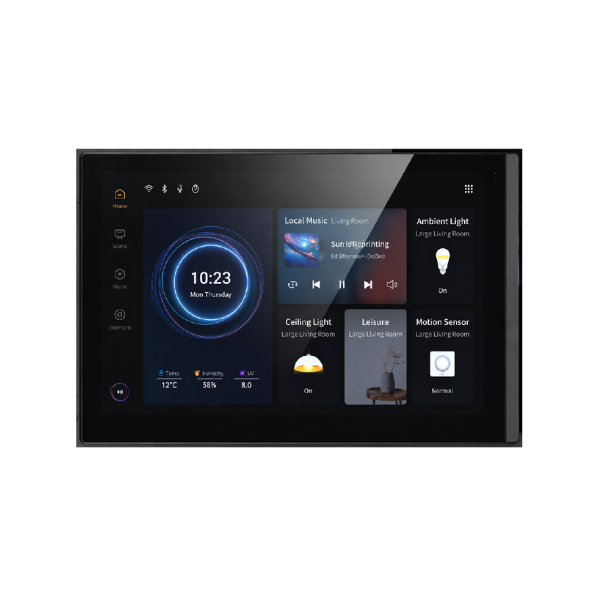

The Smart Touch S10 is a flagship 10.1-inch KNX intelligent control panel designed to deliver a seamless and intuitive user experience for modern smart spaces. Serving as the central hub of building automation, it provides effortless control and monitoring of lighting, shading, HVAC, scenes, security, and energy management — all through a single, elegant interface.
With its high-resolution capacitive touchscreen and ultra-slim design, the S10 combines refined aesthetics with powerful functionality, making it a perfect fit for premium residential, commercial, and hospitality environments.
More than just a wall panel, the S10 also functions as a dedicated app server, enabling mobile phones and tablets to connect directly for remote operation. This ensures users enjoy the same responsive and intuitive control experience across multiple devices, whether at home or on the move.
Future-ready by design, the S10 supports KNX Secure communication to safeguard data integrity and network reliability. Its scalability allows seamless integration with large numbers of KNX devices, while features such as firmware updates, customizable dashboards, and advanced logic functions make it an all-in-one, future-proof control solution for intelligent buildings.
General Specification
Display & Interface
- Display: 10.1″ IPS or equivalent, resolution 1280 × 800 px
- Full capacitive touch interface, optimized to work even with wet hands
- Multi-mode interaction: touch, voice (AI online), app / remote control
- Graphical UI, multiple pages, icons, scenes, status feedback
Communication & Connectivity
- KNX TP interface (with KNX Secure support)
- 2 × Ethernet ports (RJ45)
- RS485 interface
- 8 dry contact (binary) inputs, configurable as alarm / zone inputs
- WiFi: supports 2.4 + 5 GHz
- Bluetooth 5.1 support
- SIP support / intercom integration (compatible with SIP standard devices)
Functional Features
- Secure KNX communication (KNX Secure)
- OTA firmware / software updates support
- Supports a large number of KNX devices / channels: up to ~ 240 devices (120 multifunction channels + 120 simple channels)
- Scenes, timers, logic, alarm zones, groups support
- Proximity / presence sensor to wake / trigger behaviors (e.g. screen on)
Tamper / removal alarm: device detects unauthorized removal / movement and triggers alarm
- Integration of intercom: can act as indoor unit for SIP intercom, support video calls, one-touch unlocking, address book, etc.
Product Parameter
Power Supply
Bus voltage: 21-30V DC，via the KNX bus
Bus current: <3.8mA/24V，<3.4mA/30V
Bus consumption: <0.1W
Auxiliary Supply
Voltage: 12-30V DC
Current: <350mA/24V，<280mA/30V
Consumption: <8W
Temperature
Operation: – 5 °C … + 45 °C
Storage: –25 °C … + 55 °C
Transport: – 25 °C … + 70 °C
Environment
Humidity: <93%, except dewing
Installation
In a conventional 86mm or double 60mm wiring box
Dimension/Weight
KNX Smart Touch S10：248mm*154.6mm*34.4mm/0.8Kg
