Shutter actuator are design for installation in distribution board and suitable for controlling independent 230V AC drives, for positioning blinds, roller shutters, awnings or relevant shading products. The Shutter actuator output contact are designed mechanically interlocked in order both contacts will not operate at the same time. Shutter actuator is built-in with manual button which can be switch UP/DOWN or OPEN/CLOSE manually. Each output actuator are parameterized via ETS with connection to KNX using bus connection terminal.
Shutter Actuator - 4 channels, 6A
Shutter actuator are design for installation in distribution board and suitable for controlling independent 230V AC drives, for positioning blinds, roller shutters, awnings or relevant shading products. The Shutter actuator output contact are designed mechanically interlocked in order both contacts will not operate at the same time. Shutter actuator is built-in with manual button which can be switch UP/DOWN or OPEN/CLOSE manually. Each output actuator are parameterized via ETS with connection to KNX using bus connection terminal.
SKU: GC06SH001

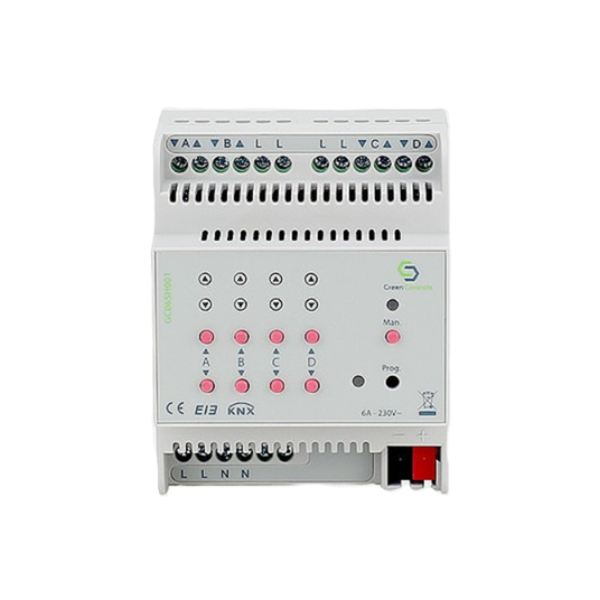

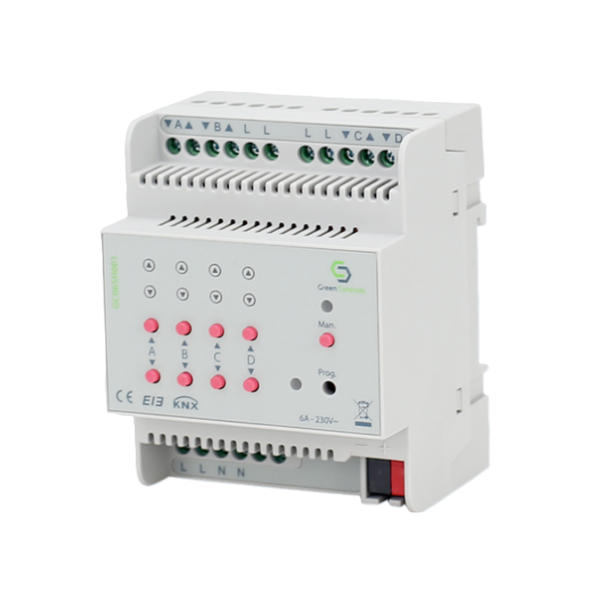

Shutter Actuator - 4 channels, 6A
This model is designed to control 230VAC drives for positioning blinds, roller shutters, awnings or relevant shading products. The output contacts are designed to mechanically interlocked in order for both contacts to not operate at the same time.
SKU: GC06SH001
General Specification
| Operating Voltage | 21 ~ 30 VDC via KNX bus voltage |
| Current Consumption | < 12mA |
| Power Consumption | Max. 360mW |
| Number of Contacts (UP/DOWN) | 4 |
| Output Switching Current | 6A at 230V AC AC1/AC3 |
| Output Mechanical Service Life | > 10⁵ AC1 |
| KNX Connection | Bus terminal (Black / Red) |
| Load Current Circuit Connection | Screw terminals |
| Operation temperature | –5 °C ~ + 45 °C |
| Storage Temperature | – 25 °C ~ + 55 °C |
| Mounting | 35mm mounting rail |
| Size (W x H x D) | 72 x 90 x 64 mm |
| CE norm | According to the EMC and low voltage guideline, EN 50090-2-2 |
| Certification | EIB KNX certified |
Product Parameter
Product warranty period: 1 year
Operating Voltage: 21 – 30 VDC via KNX
Current Consumption: <12mA
No of Channels: 4
Operation: –5 °C ~ + 45 °C
Storage: – 25 °C ~ + 55 °C
Size: 72 x 90 x 65 mm
