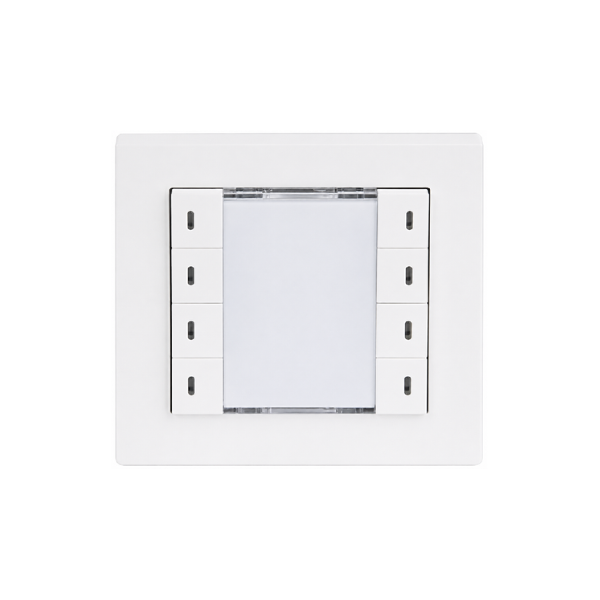

KNX Push Button, 4-fold

The Push Button Sensor Plus Series is a KNX push button switch designed to provide a seamless and intuitive user experience within KNX smart home and building automation systems. It allows effortless control of lighting, shading, HVAC, and other connected functions, making it a reliable and versatile interface for modern residential, hospitality, and commercial applications.

For flexible installation, the frame is sold separately and is fully compatible with any European standard 55 mm frame, ensuring easy integration into a wide range of interior designs. To complement different styles and preferences, the Push Button Sensor Plus Series is available in both white and black modules, offering a clean and contemporary look that blends perfectly with any environment.

Combining elegant design with dependable KNX functionality, the Push Button Sensor Plus Series is an ideal choice for enhancing comfort, style, and efficiency in intelligent building automation projects.

SKU: GC10PB004WH

KNX Push Button, 4-fold

Push Button Sensor Plus Series is a KNX push button switch used to provide seamless
experience of KNX system. Frame is separately purchased and is compatible with any European
standard 55mm frame. This series comes in white module.

SKU: GC10PB004WH

The Push Button Sensor Plus Series is a KNX push button switch designed to provide a seamless and intuitive user experience within KNX smart home and building automation systems. It allows effortless control of lighting, shading, HVAC, and other connected functions, making it a reliable and versatile interface for modern residential, hospitality, and commercial applications.

For flexible installation, the frame is sold separately and is fully compatible with any European standard 55 mm frame, ensuring easy integration into a wide range of interior designs. To complement different styles and preferences, the Push Button Sensor Plus Series is available in both white and black modules, offering a clean and contemporary look that blends perfectly with any environment.

Combining elegant design with dependable KNX functionality, the Push Button Sensor Plus Series is an ideal choice for enhancing comfort, style, and efficiency in intelligent building automation projects.

General Specification

Operating Voltage 21 ~ 30 VDC via KNX bus voltage
Models Available GC10PB001– 1-Fold (2 gang)

GC10PB002 – 2-Fold (4 gang)

GC10PB003 – 3-Fold (6 gang)

GC10PB004 – 4-Fold (8 gang)

Features Scene control and self-programmable scene module.

Programs stored in non-volatile memory (ROM).

Number of Input Contacts 20
Dimmer Control 255 possible levels
KNX Connection Bus terminal (Black / Red)
Mounting Centre 60.3 or 86mm Wall Box fit
Operation temperature –5 °C ~ + 45 °C
Operating Humidity 0 – 93% RH, non-condensing
Colour White, Black
Size (W x H x D) 55.4 X 55.4 X 18.7 mm
CE norm According to the EMC and low voltage guideline, EN 50090-2-2
Certification EIB KNX certified

Product Parameter

Dimension : 55.4 X 55.4 X 18.7 mm
Bus voltage : 21 ~ 30 VDC via KNX bus voltage
Connection, KNX : Bus terminal (Black / Red)
Operation : –5 °C ~ + 45 °C
Humidity : 0 – 93% RH, non-condensing

Technical Sheet

Product Database

Datasheet
